Determination of Terpenes in Cannabis by Headspace GC-SQMS

INTRODUCTION

Hemp and marijuana are becoming more popular because of legalisation in multiple countries. The increase of this market also increases the offer of products and therefore the need to monitor different  components. One of these components are cannabinoids or just short potency analysis, which can be found in our portfolio of Cannabis applications (AN091,92,93,130). This application focusses on terpenes analysis using GC-SQMS, for Terpene analysis using GC-FID see application note 133.

Terpenes are organic compounds in marijuana that provide the distinguished aroma and flavour. Every species or strain of marijuana has it’s own distinguished profile and therefore it is a perfect method to analyse specific strains. These terpenes do not only provide flavour or aroma but also support other components on producing the desired effects, terpenes can help in producing a calming affect but can also give you more energy (energizing effect).

Figure 1 shows the SCION Instruments 436 GC with single quad (SQ) mass spectrometer  together with the Scion HT3 Headspace sampler. On which this method is applicable to.

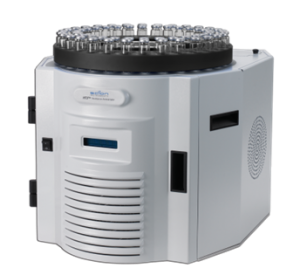

HT3 Headspace Sampler

Figure 1. SCION HT3 Headspace Sampler together with the SCION Instruments 436 GC with SQ-MS.

EXPERIMENTAL

This analysis can be implemented on the 436-GC and the 456-GC platform. The analysis was performed on the Scion 456-GC analyser equipped with a single quad mass spectrometer and Scion  HT3  Headspace autosampler.

There are more than one hundred terpenes known. For this application the focus is on the 21 most important components, which are shown in table 1.

Table 1:  Terpenes components

Nr. Component Nr. Component
1 α-Pinene 12 Terpinolene
2 Camphene 13 Linalool
3 β-Mycrene 14 Isopulegol
4 β-Pinene 15 Geraniol
5 ∆-3-Carene 16 β-Caryophllene
6 α-Terpinene 17 α-Humulene
7 d-Limonene 18 Nerolidol-1
8 P-Cymene 19 Guaiol
9 Eucalyptol 20 Caryphyllene oxide
10 Ocimene 21 α-Bisabolol
11 Ɣ-Terpinene



The focus of the calibration lies on these 21 components, the calibration curves for the terpenes standards were prepared between 0.5 and 16 µg/ml. The Quality Control (QC) sample was made from 4 µg/ml for all components.

To analyse terpenes in marijuana an extraction has to be performed. 0.1g of the sample was added to 30mL of methanol before shaking vigorously for one minute. The extract was left to settle for 30 minutes before being filtered. 2 mL was then transferred into a 20 ml Scion headspace vial, ready for injection.

Please keep in mind that the sample preparation is different than the potency preparation where the sample is heated. Table 2 details the GC, MS and headspace parameters used throughout this method.

Table 2. Instrumentation operating conditions.

Injector Splitless 50:1, 230 °C
Column 624-MS
Oven Program 50°C (1.0 min), 10°C/min to 250°C (2.0 min)
Carrier Helium, 1.6 ml/min
Autosampler SCION HT3
Software MS work station/ HT3 Teklink
Oven Temperature 150°C
Transfer line temperature 150°C
Sample Temperature 120°C
Sample Equilibrium time 30 min
MS transfer line temperature  250°C
Ion source temperature  200°C
Ionization mode EI
Scan start 2.00
Scan mode Full Scan

RESULTS

The precision of the method was obtained by seven consecutive injections containing 4 µg/ml of each component. While reviewing the data it is important to keep in mind that these values are on trace level, and that the headspace injection can cause an extra variance in the data. It was shown that the RSD for the components lied between 2.0 and 7.0 %., which is really good for this method. The repeatability of each component can be found in table 3.

All the chromatographic peaks were identified with the NIST library and integrated. β-Mycrene and β-Pinene have the same quantification ion and almost have the same retention times, it is advised to check the integration of these components after analysis.

Figure 2 shows examples of these target peaks from a 4 µg/ml standard containing a mix of all the components.

α-Pinene                                                                                      Camphene

α-Pinene peaks from terpene analysis of cannabis Camphene peaks from terpene analysis of cannabis

β-Mycrene                                                                                   β-Pinene
β-Mycrene peaks from terpene analysis of cannabis  β-Pinene peaks from terpene analysis of cannabis

∆-3-Carene                                                                                 α-Terpinene
∆-3-Carene peaks from terpene analysis of cannabis α-Terpinene peaks from terpene analysis of cannabis

d-Limonene                                                                                P-Cymene

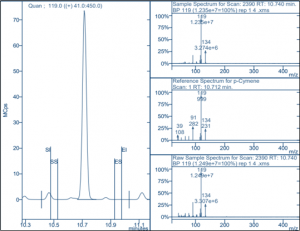

d-Limonene peaks from terpene analysis of cannabis P-Cymene peaks from terpene analysis of cannabis

Eucalyptol                                                                                  Ocimene
Eucalyptol peaks from terpene analysis of cannabis Ocimene peaks from terpene analysis of cannabis

Ɣ-Terpinene                                                                                Terpinolene
V-Terpinene peaks from terpene analysis of cannabis Terpinolene peaks from terpene analysis of cannabis

Linalool                                                                                        Isopulegol
Linalool peaks from terpene analysis of cannabis Isopulegol peaks from terpene analysis of cannabis

Geraniol                                                                                      β-Caryophllene
Geraniol peaks from terpene analysis of cannabis β-Caryophllene peaks from terpene analysis of cannabis

α-Humulene                                                                              Nerolidol-1
α-Humulene peaks from the terpene analysis of cannabis Nerolidol-1 peaks from the terpene analysis of cannabis

Guaiol                                                                                          Caryphyllene oxide

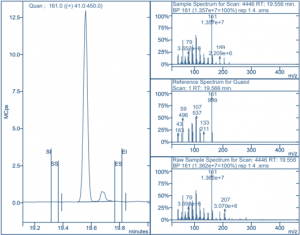

Guaiol peaks from the terpene analysis of cannabis Caryphyllene oxide peaks from the terpene analysis of cannabis

α-Bisabolol

α-Bisabolol peaks from the terpene analysis of cannabis
Figure 2.  Target compound example peaks.



The calibration curves for the Terpene standards were prepared between 0.5 to 16 µg/ml. Most components had a correlation coefficient (R2) of 0.999 or greater which is perfect for this application. Figure 4 shows an example of the calibration curve for three components. From the linearity the limit of detection (LOD) and limit of quantitation (LOQ) was calculated.

Three example calibration curves of the Terpenes standard.
Figure 4: Three example calibration curves of the Terpenes standard.

The QC sample was analysed using seven injections, the average concentrations are shown in table 3 together with the LOD and LOQ.

After analysis of the marijuana extract it showed that the sample contained α-Pinene, Camphene, β-Mycrene, β-Pinene, Linalool, α-Humulene, Guaiol and α-Bisabolol. The concentration of these components are also shown in table 3. In this app note a sample volume of 2 ml is advised, when the components are below the LOD and LOQ it is possible to increase the sample volume as long if the total volume is 10 ml or another option is enrichment of the sample.

Table 3. Results of different Terpenes analysis.

Nr. Component LOD µg/ml LOQ µg/ml QC µg/ml Repeatability % Sample µg/ml
1 α-Pinene 0.9996 0.24 0.71 4.1 3.13 15.1
2 Camphene 0.9999 0.12 0.35 4.3 3.93 0.39
3 β-Mycrene 0.9997 0.21 0.65 4.0 3.13 2.80
4 β-Pinene 0.9997 0.21 0.65 4.0 3.24 2.80
5 ∆-3-Carene 0.9992 0.32 0.98 3.7 3.85
6 α-Terpinene 0.9991 0.36 1.08 3.5 3.95
7 d-Limonene 0.9995 0.25 0.76 3.9 3.47
8 P-Cymene 0.9992 0.33 1.01 3.6 5.71
9 Eucalyptol 0.9999 0.11 0.33 3.8 4.54
10 Ocimene 0.9998 0.15 0.54 3.5 4.59
11 Ɣ-Terpinene 0.9996 0.23 0.71 3.7 6.08
12 Terpinolene 0.9990 0.36 1.10 3.5 5.89
13 Linalool 0.9980 0.51 1.55 3.7 5.43 6.84
14 Isopulegol 0.9983 0.48 1.46 4.0 5.88
15 Geraniol 0.9964 1.21 3.66 4.3 4.67
16 β-Caryophllene 0.9992 0.33 1.00 4.0 7.02
17 α-Humulene 0.9985 0.46 1.38 3.5 6.38 4.53
18 Nerolidol-1 0.9969 1.31 3.96 3.6 3.13
19 Guaiol 0.9982 0.84 2.55 3.3 4.97 8.95
20 Caryphyllene oxide 0.9999 0.28 0.85 3.6 2.09
21 α-Bisabolol 0.9935 1.98 5.99 4.4 2.63 38.1

CONCLUSION

The Scion 4X6-GC analyser equipped with a split/spitless injector, Scion Instruments column, SQ-MS and HT3 Headspace Sampler is capable of analysing Terpenes from cannabis products in a qualitative and quantitative way.

The method developed is well suited for Terpenes analysis. It should be taken into account that the concentration of Terpenes in the sample can be very low and that a increase of sample volume or enrichment is necessary.
